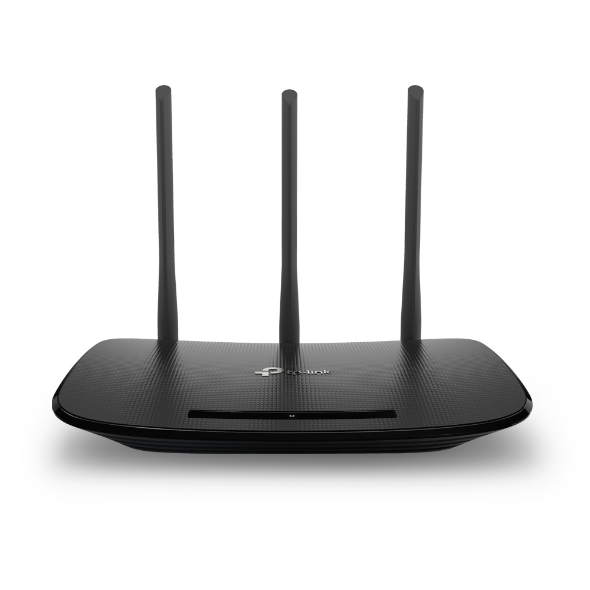

TL-WR940N
TL-WR940N
450Mbps Wireless N Router
- 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming

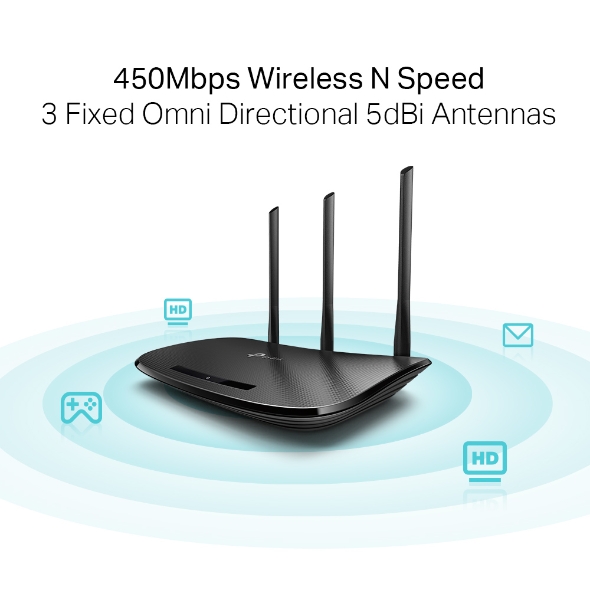

- Three antennas increase the wireless robustness and stability
- Supports 3 modes: Router, Range Extender and Access Point modes
- Easy wireless security encryption at a push of WPS button
- Bandwidth Control: assigns your preferred devices with more bandwidth
₨4,000.00
10
People watching this product now!
-
Warranty 1 year
Specification
HARDWARE FEATURES
| Dimensions ( W x D x H ) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35mm) |
| Processor. | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons. | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power. | 9 V ⎓ 0.6 A |
| Interface - | 9 V ⎓ 0.6 A |
WIRELESS FEATURES
| Wireless Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N450 2.4 GHz: 450 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses 3× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Legacy |
| Working-Modes | Router Mode Access Point Mode Range Extender Mode |
Package Contents

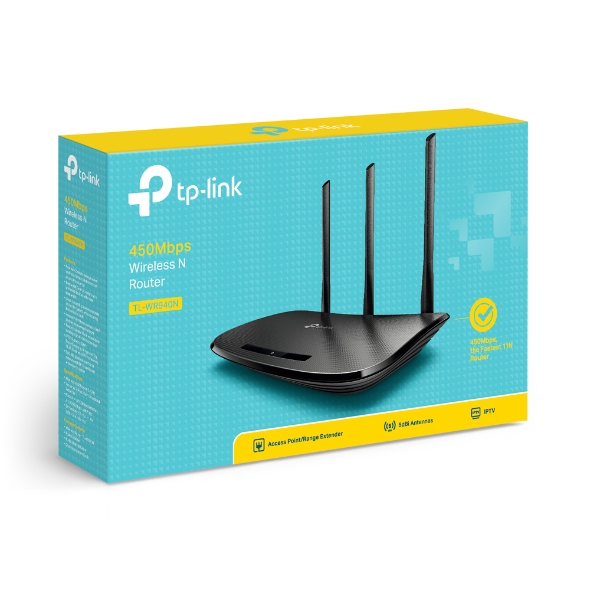

| Package Contents | Wi-Fi Router TL-WR940N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Certification
| Certifications | FCC, CE, RoHS |
System Parameters
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Environment
| Environment Parameters | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
SECURITY
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
SOFTWARE
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | VIrtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management | Tether App Webpage |
TEST DATA
| WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 450M: -68dBm@10% PER 216M: -70dBm@10% PER 130M: -78dBm@10% PER 54M: -74dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -93dBm@8% PER |
