TL-WN844N
TL-WR844N
300 Mbps Multi-Mode Wi-Fi Router

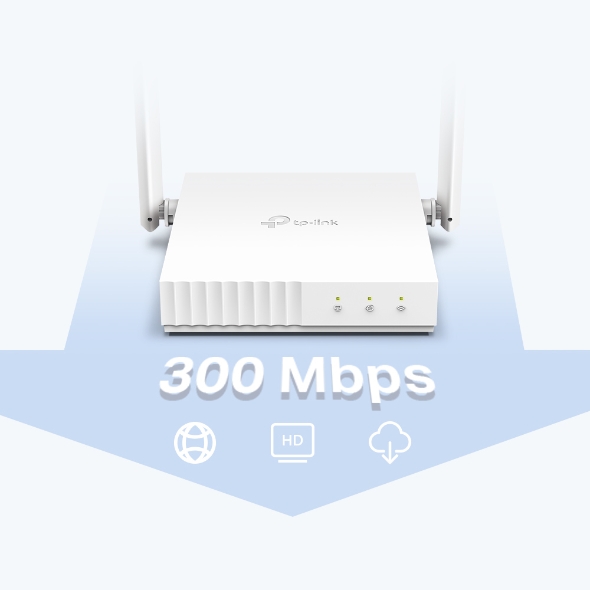

- High-Speed Wi-Fi – 300 Mbps wireless transmission rate is ideal for both bandwidth sensitive tasks and basic work.
- Boosted Coverage – Two omnidirectional antennas and 2×2 MIMO deliver strong Wi-Fi signal and reliable connections.
- Multi-Mode 4 in 1 – Supports Router, Access Point, Range Extender, and WISP modes to meet any network need.

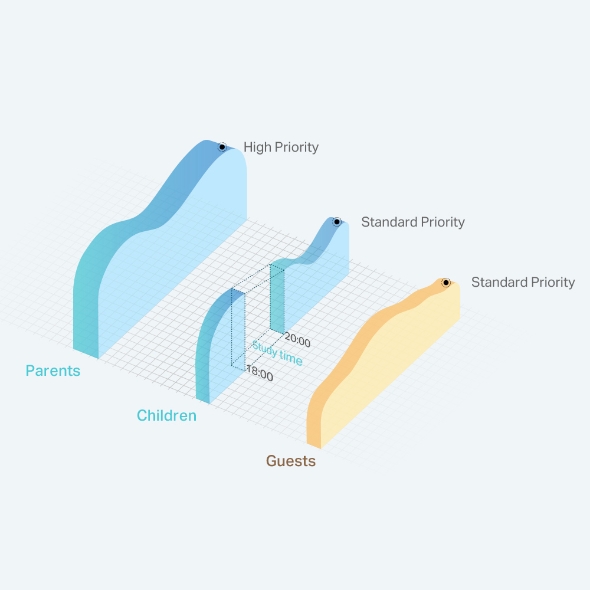

- Parental Controls – Manages when and how connected devices can access the internet.
- Guest Network – Provides separate access for guests while securing the host network.
- Smooth HD Streaming – Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported – Compatible with the IPv6 (the latest Internet Protocol version 6).
₨2,300.00
26
People watching this product now!
-
Warranty 1 year
Specification
HARDWARE FEATURES
| Dimensions ( W x D x H ) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
| Processor. | Single-Core CPU |

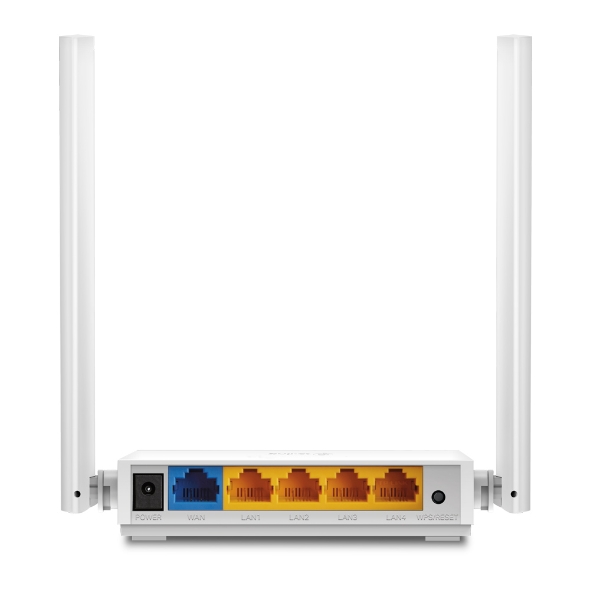

| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons. | Reset Button |
| Power. | 5 V ⎓ 0.6 A |
WIRELESS FEATURES
| Wireless Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses 2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working-Modes | Router Mode Access Point Mode Range Extender Mode WISP Mode |
Package Contents

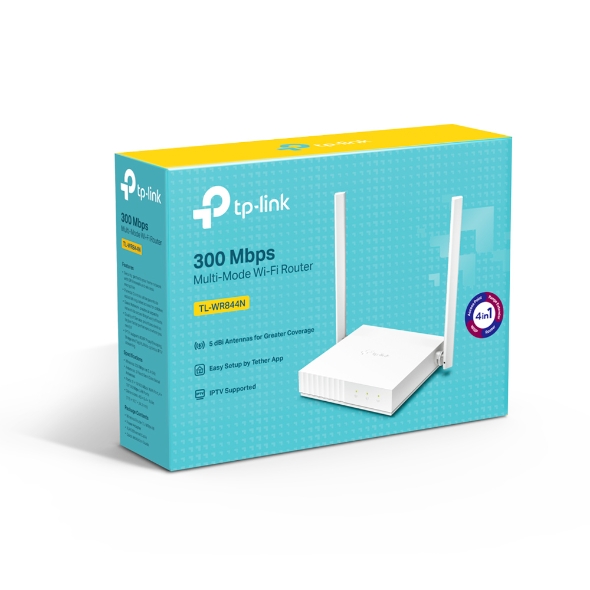

| Package Contents | Wi-Fi Router TL-WR844N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Certification
| Certifications | FCC, CE, RoHS |
System Parameters
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Environment
| Environment Parameters | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
SECURITY
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
SOFTWARE
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management | Tether App Webpage |
TEST DATA
| WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER |
