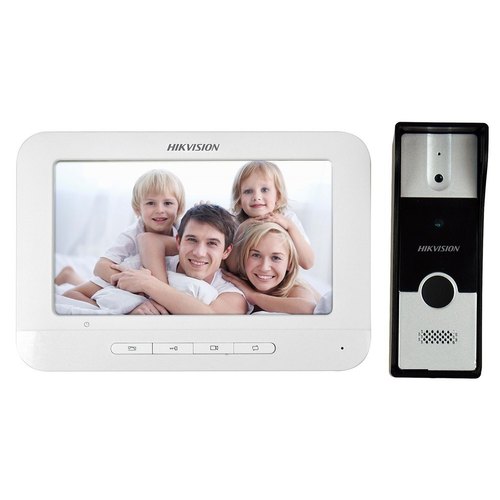

DS-KIS204T
Villa Analog Kit
- Analog Kit with picture storage function for villa or house, only one call button
- Kit including DS-KB2411T-IM and DS-KH2220-S, 5-meter 4-wire cable, and other accessories
- European power supply adaptor included (please mark for other standards when you order)
₨15,500.00
32
People watching this product now!
-
Warranty 1 year
Specification
Network
| Network-Protocol | TCP/IP, RSTP |
| Wired Network | 10/100 Mbps Ethernet |
| Wireless | Wi-Fi 802.11 b/g/n |
General
| Dimension | 128 mm × 42 mm × 24.8 mm |
| Power Supply | 12 VDC |
| Consumption | Max. 5W |
| Working Temperature | -10° C to + 55° C (14° F to 131° F) |
| Working Humidity | 10% to 90% |
Video and Audio
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
Camera
| Field of view | Horizontal: 129° Vertical: 75° |
| Wide Dynamic Range | True WDR |
| Black & White Night | Support |
| Night Vision | Low illumination IR supplement mode:3 m |
Interface
| I/O Output | 1 relay output |
| Four-Wire | 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding) |
Lens
| Lens Type | 1/2.7 |
| Focal Length & FOV | Horizontal: 66.2°，Vertical: 37.2° |
| Focus | 1920 × 1080 |
Display Parameters
| Display Screen | 7-inch colorful TFT LCD |
| Display Resolution | 800 × 480 |
| Operation Method | Physical button |
Indoor Station Parameters
| Parameters | (General): Power Supply 12 VDC Power Consumption ≤5 W Working Temperature -10° C to + 55° C (14° F to 131° F) Working Humidity 10% to 90% Dimensions (W × H × D) 195.8 mm × 132.8 mm × 18.39 mm (7.7 |
