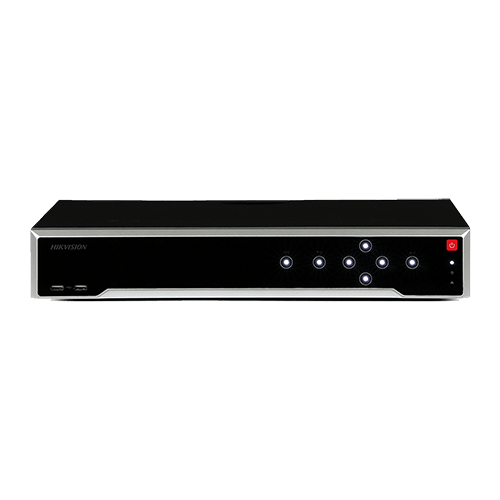

DS-7716NI-I4(B)
16-ch 1.5U 4K NVR
- Up to 16 channel IP cameras can be connected
- Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
- Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
- 4 HDDs for continuous video recording
- Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
- Supports dual-stream recording to save time and bandwidth.
₨48,000.00
20
People watching this product now!
-
Warranty 1 year
Specification
Network
| Remote-Connection | 128 |
| Network-Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS |
| Network-Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
General
| Dimension | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") ≤ 5 kg (11 lb.) |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 20 W (without HDD) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
Auxiliary Interface
| SATA | 2 SATA interface |
| Capacity | 4 SATA interfaces |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/4 (16/8 is optional) |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| ESATA | N/A (1 eSATA interface is optional) |
Video and Audio
| IP Video Input | 16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. |
| VGA Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Alarm In/Out | 16/4 (16/8 is optional) |
| Incoming Bandwidth | 160 Mbps |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Camera
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | YES |
| Day & Night Mode | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Wide Dynamic Range | Digital WDR |
| 3D DNR | |
| P/N | P/N |
Interface
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Approval
| Security | Ingression protection: IP67 (IEC 60529-2013) |
| Safeguard | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Certification
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
Decoding
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. |
| Decoding Capability | 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) |
| Synchronous-Playback | 16-ch |
| Stream-Type | Video, Video & Audio |
| Dual-Stream Recording | Support |
| Audio-compression. | G.711ulaw/G.711alaw/G.722/G.726 |
