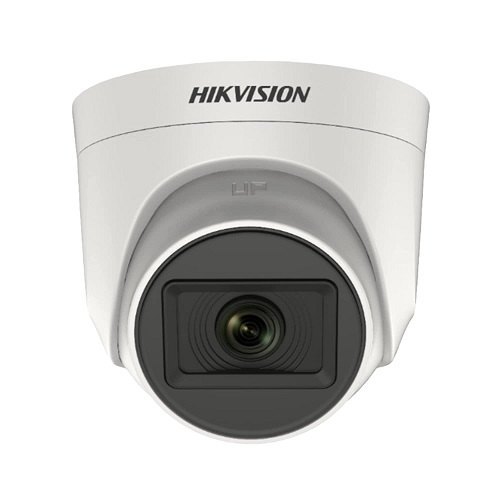

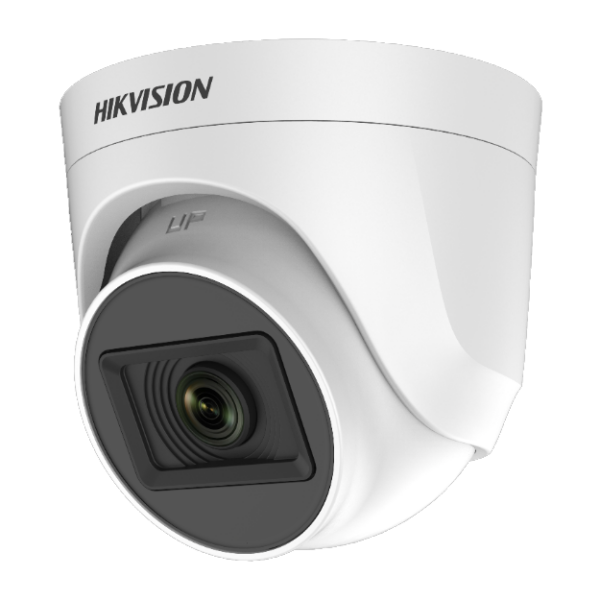

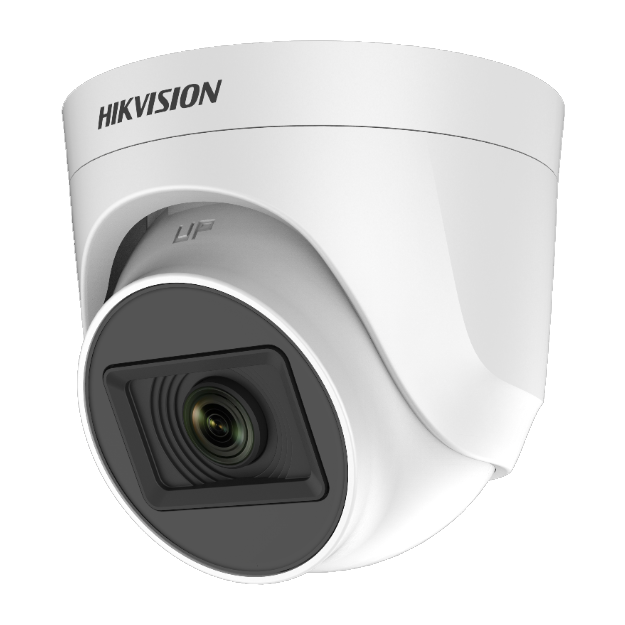

DS-2CE76H0T-ITPFS
5 MP Audio Indoor Fixed Turret Camera
- 5 MP coaxial audio camera
- Enhanced safety with discreet and economical built-in microphone
- Transmit audio over coaxial cable
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
₨5,348.00
14
People watching this product now!
-
Warranty 1 year
Specification
General
| Material | Plastic |
| Dimension | Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11") Approx. 140.5 g (0.31 lb.) |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 3.7 W |
| IR Range | Up to 20 m |
| Language | English |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Wide Dynamic Range (WDR) | Digital WDR |
| Frame Frequency | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
Camera
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night Mode | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Wide Dynamic Range | Digital WDR |
Interface
| Video Output | Switchable TVI/AHD/CVI/CVBS |
Lens
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5° |
| Lens Mount | M12 |
