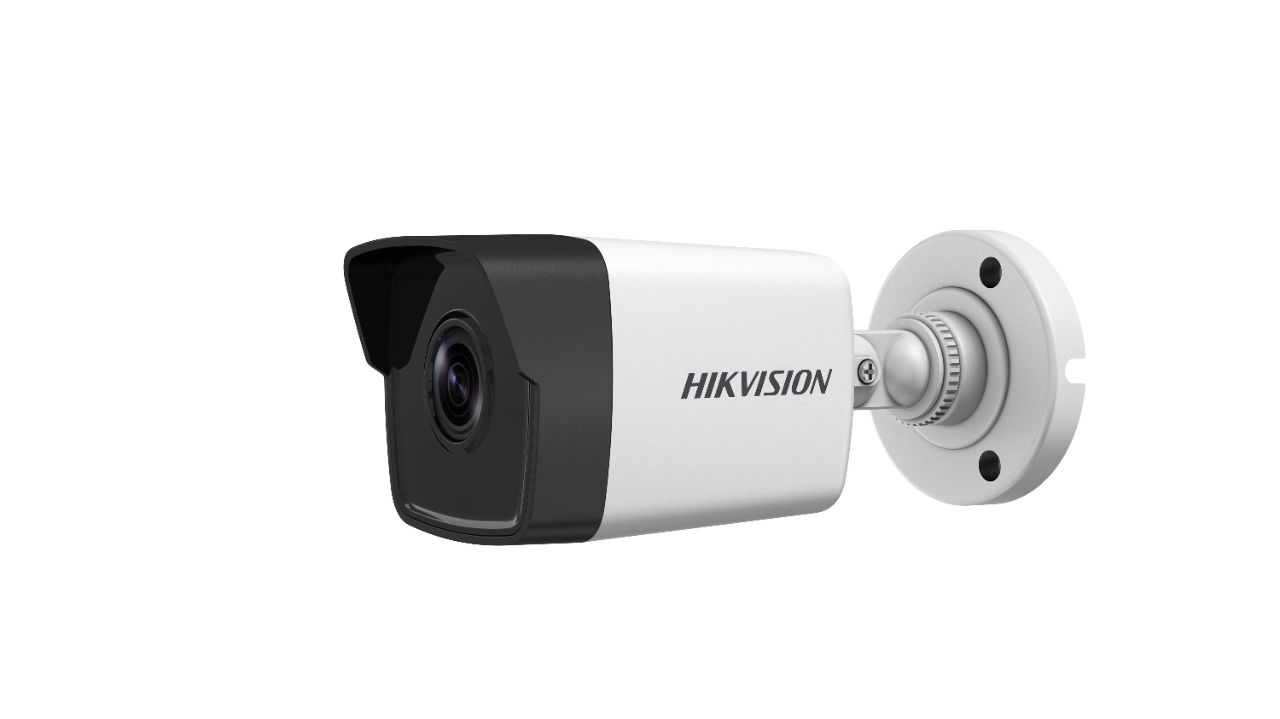

DS-2CD1023G0-L

Name: DS-2CD1023G0-L
SKU: 11134
Availability: InStock

2 MP Fixed Bullet Network Camera

₨6,000.00

35 People watching this product now!

Camera

Lens

Lens Type	Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Focal Length & FOV	2.8 horizontal FOV 103°, vertical FOV 59°, diagonal FOV 118°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Mount	M12
Aperture	F2.0
Focus	No
Auto-Iris	No

Video

Video Bit Rate	32 Kbps to 8 Mbps
Video-Compression	Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
H.264 Type	BaseLine Profile/Main Profile/High Profile
H.265 Type	Main Profile
H.264+	2.8 mm, 4 mm, 6 mm
H.265+	Main stream supports

Network

Network-Protocol	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View	Up to 6 channels
API	ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Safety	Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Client	iVMS-4200, Hik-Connect, iVMS-5200
Web Browser	IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Alarm Linkage	Motion detection, video tampering alarm, illegal login


Day/Night Mode	Auto, scheduled
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser,50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement	BLC, 3D DNR
Sub Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Main-Stream	supports

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event	Motion detection, exception (illegal login)
Linkage	Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.

General

Material	Metal & Plastic
Dimension	Camera: Ø 70 mm × 172.7mm ( 2.7
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
Firmware Version	5.5.2
General Function	Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Power Consumption And Current	12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Startup And Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Interface Protection	IP67,TVS 2000V lightning protection, surge protection and voltage transient protection

Approval

Security	Ingression protection: IP67 (IEC 60529-2013)
Safeguard	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
